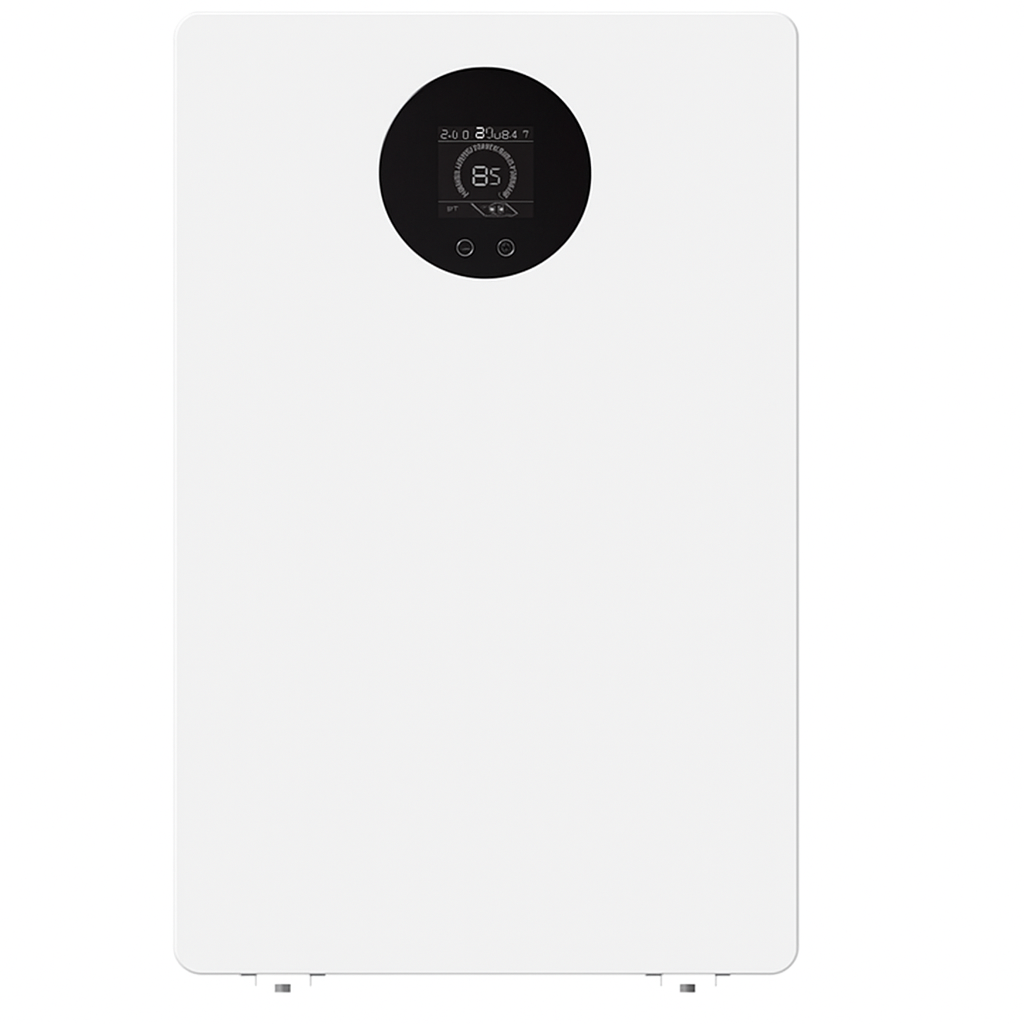

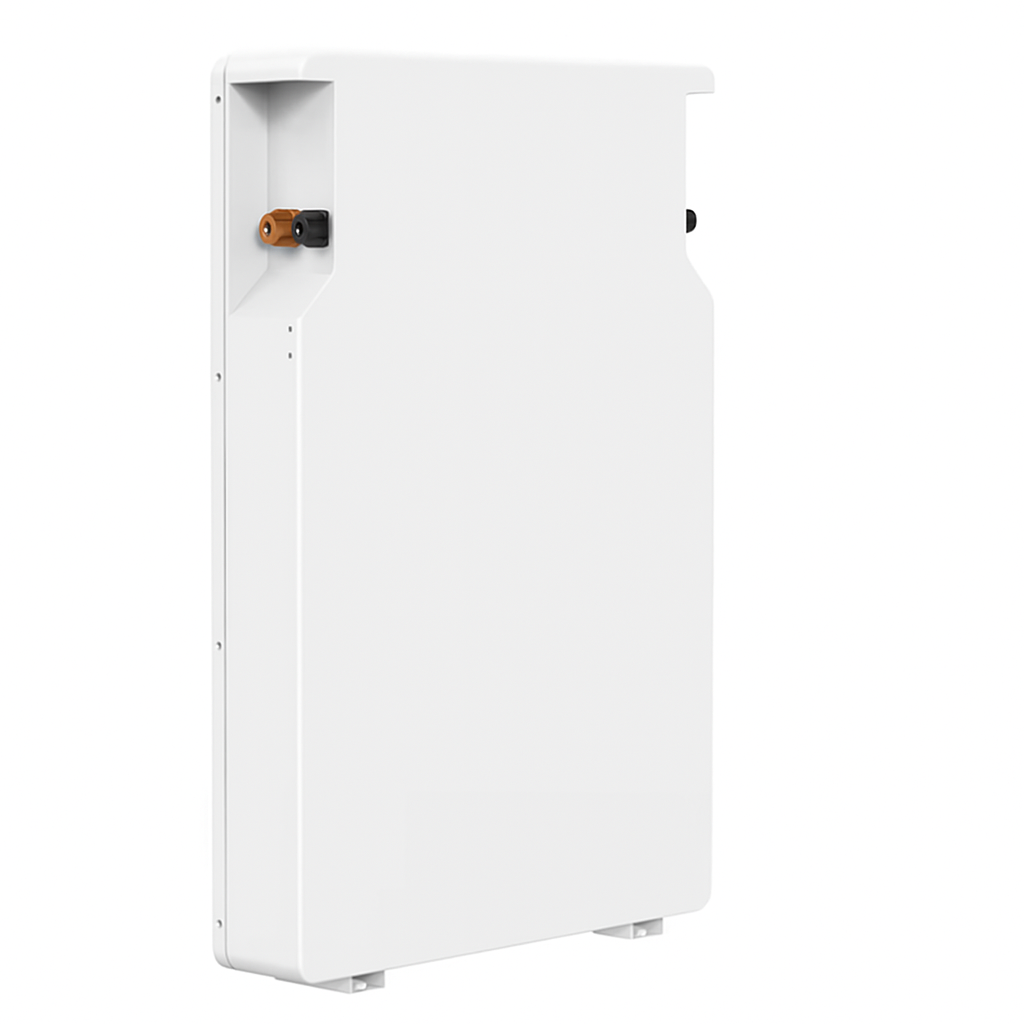

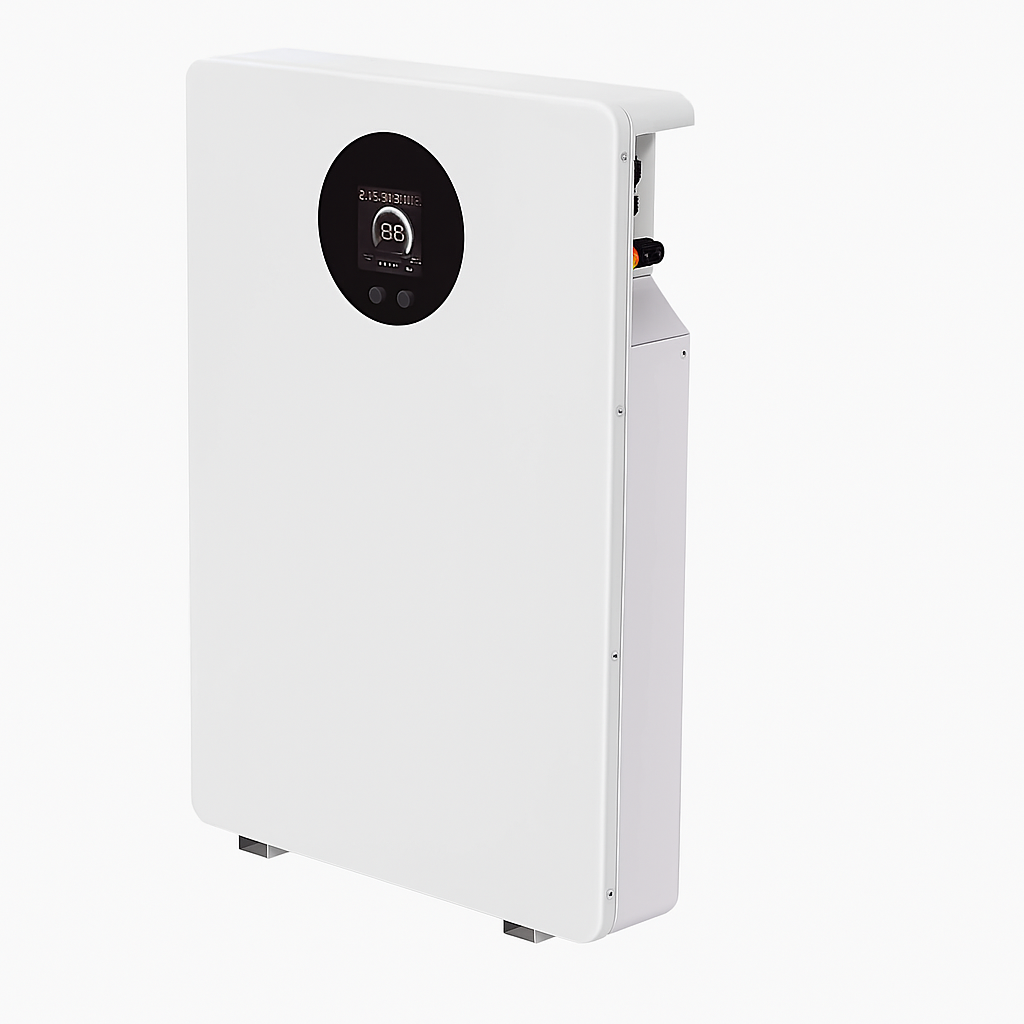

ArcadiaCell Lumina 12k Wall Battery

The ArcadiaCell Lumina 12k Wall Battery is designed for discerning homeowners who want elegant, space-saving backup power and smart energy control. This premium LiFePO₄ system mounts cleanly on the wall, features an integrated round display with simple controls, and delivers quiet, reliable storage for whole-home resilience and peak-shaving.

Specifications

• Material: Powder-coated aluminum enclosure (IP55), high-density LiFePO₄ cells

• Dimensions: 900 mm (H) x 550 mm (W) x 200 mm (D); 86 kg

• Capacity: 12.8 kWh usable, 51.2 V nominal, >94% round-trip efficiency

• Power Rating: 6 kW continuous, 9 kW peak (10 s), seamless backup with hybrid inverters

• Interfaces: Front LCD, CAN/RS485, dry-contact ATS, field-serviceable DC breakers

Features

• Slim Wall-Mount Design: Minimal footprint with clean front display and soft-touch buttons

• Safe LFP Chemistry: Excellent thermal stability and low maintenance for home use

• Advanced BMS: Active cell balancing, protective cutoffs, and granular SOC accuracy

• Quiet Operation: Convection-optimized chassis with adaptive fan assistance for peak loads

• Scalable Energy: Parallel up to 8 units for 102 kWh total storage with multi-pack coordination

• Utility Savings: Time-of-use scheduling and solar self-consumption modes reduce bills

Maintenance

• Daily: Glance at the front display to confirm SOC and system status

• Weekly: Dust the enclosure and verify ventilation clearance

• Annually: Perform capacity check, tighten terminals, and update inverter/BMS firmware

Warranty

• Product Warranty: 10 years against defects in materials and workmanship

• Performance Warranty: 10 years or 6000 cycles (≥80% retained capacity)
